BrassCraft® CSSC14-36 HVACR_CSSC1436

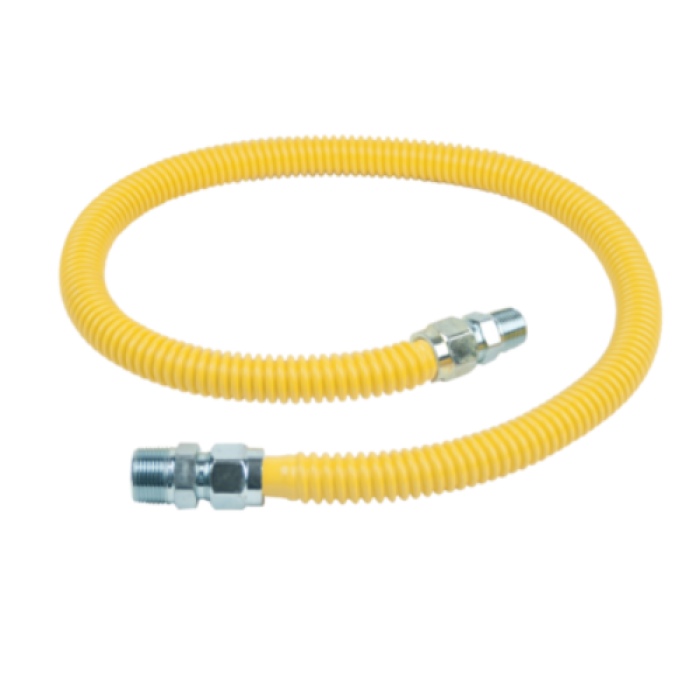

BrassCraft® CSSC14-36 Gas Connector, MIP Connection, 3/4 x 1/2 in, 36 in L, 1/2 in ID, 5/8 in OD, 304L Stainless Steel
- Manufacturer: BrassCraft Manufacturing Company
- Brand Name: BrassCraft®
- Part#: 9968350
- MPN: CSSC14-36
- UPC: 026613112398
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Availability By Location
-
Price:
BrassCraft's ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly.
BrassCraft® Gas Connector, MIP Connection, 3/4 x 1/2 in Fitting, 125000 Btu Natural, 200000 Btu LP, 36 in Length, 1/2 in ID, 5/8 in OD, 1/2 psi, 304L Stainless Steel, Yellow, Polymer Blend, -40 to 150 deg F
| BTU Rating | : | 125000 Btu Natural, 200000 Btu LP |
| Color | : | Yellow |
| Connection Type | : | MIP |
| Finish | : | Polymer Blend |
| Fitting Size | : | 3/4 x 1/2 in |
| Inside Diameter | : | 1/2 in |
| Length | : | 36 in |
| Material | : | 304L Stainless Steel |
| Outside Diameter | : | 5/8 in |
| Pressure Rating | : | 1/2 psi |
| Temperature Rating | : | -40 to 150 deg F |
- 100% leak tested for quality and safety
