Merit Brass A450L-96 10235885

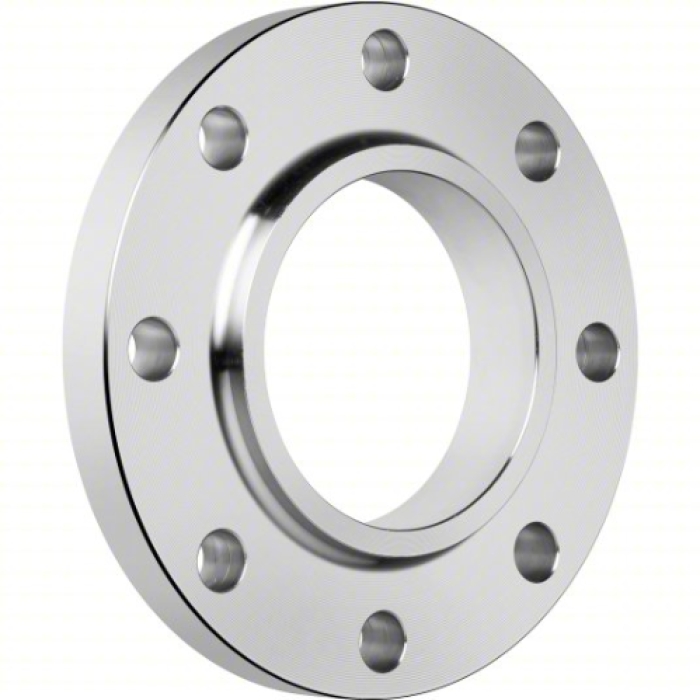

Merit Brass A450L-96 Raised Face Forged Flange, 6 in Slip x 6 in Slip, Stainless Steel, 8 -Bolt Hole, 150 lb

  • Manufacturer: Merit Brass
  • Brand Name: Merit Brass
  • Part#: 3707220
  • MPN: A450L-96
  • UPC: 671404048488
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Availability By Location

Merit Brass Raised Face Forged Flange, Flange Fitting, 6 in Connection Size 1, Slip Connection Type 1, 6 in Connection Size 2, Slip Connection Type 2, Slip|Slip Connection, Stainless Steel, 304/304L Stainless Steel Material Construction, 1 in Flange Thickness, 8 Number of Bolt Holes, 3/4 in Bolt Hole Diameter, 150 lb Pressure Class, Additional Information: 6.72 in ID x 11 in OD

Additional Information      :      6.72 in ID x 11 in OD
Bolt Hole Diameter      :      3/4 in
Connection Size 2      :      6 in
Connection Size      :      6 in
Connection Type 1      :      Slip
Connection Type 2      :      Slip
Connection Type      :      Slip|Slip
Fitting Type      :      Flange
Flange Thickness      :      1 in
Material Construction      :      304/304L Stainless Steel
Material      :      Stainless Steel
Number of Bolt Holes      :      8
Pressure Class      :      150 lb
    The forging process in ANSI flanges also allows for the flange to be tightened considerably to prevent leakage and to provide stability in a vibration situation
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Merit_Brass_A435_08_Line_Drawing.pdf
