Merit Brass A45140L-64 10235874

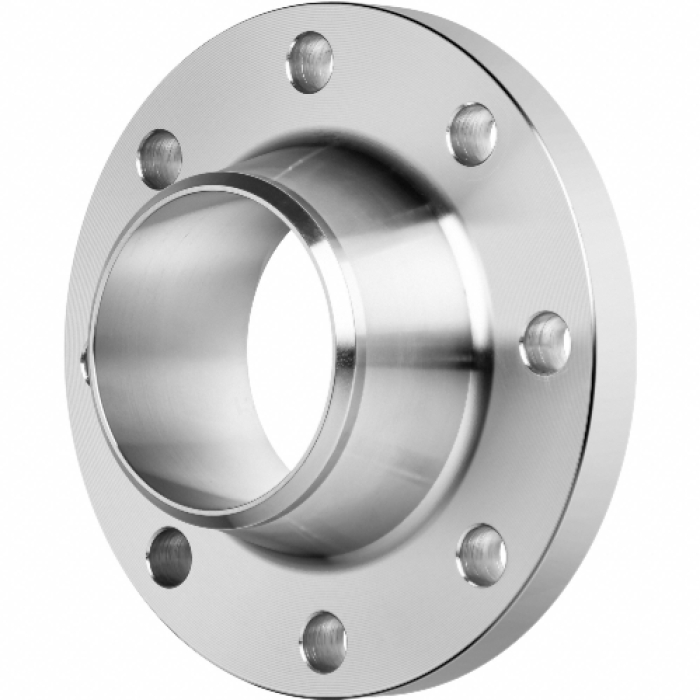

Merit Brass A45140L-64 Raised Face Forged Flange, 4 in Weld Neck x 4 in Weld Neck, Stainless Steel, 8 -Bolt Hole

  • Manufacturer: Merit Brass
  • Brand Name: Merit Brass
  • Part#: 3687120
  • MPN: A45140L-64
  • UPC: 671404048747
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Availability By Location

Merit Brass Raised Face Forged Flange, Flange Fitting, 4 in Connection Size 1, Weld Neck Connection Type 1, 4 in Connection Size 2, Weld Neck Connection Type 2, Weld Neck|Weld Neck Connection, Stainless Steel, 304/304L Stainless Steel Material Construction, 0.94 in Flange Thickness, 8 Number of Bolt Holes, 5/8 in Bolt Hole Diameter, 150 lb Pressure Class, Additional Information: 4.03 in ID x 9 in OD, SCH 40 Schedule Rating

Additional Information      :      4.03 in ID x 9 in OD, SCH 40 Schedule Rating
Bolt Hole Diameter      :      5/8 in
Connection Size 2      :      4 in
Connection Size      :      4 in
Connection Type 1      :      Weld Neck
Connection Type 2      :      Weld Neck
Connection Type      :      Weld Neck|Weld Neck
Fitting Type      :      Flange
Flange Thickness      :      0.94 in
Material Construction      :      304/304L Stainless Steel
Material      :      Stainless Steel
Number of Bolt Holes      :      8
Pressure Class      :      150 lb
    The forging process in ANSI flanges also allows for the flange to be tightened considerably to prevent leakage and to provide stability in a vibration situation
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Merit_Brass_A435_08_Line_Drawing.pdf
