SERVICE METAL SO103.0 16855308

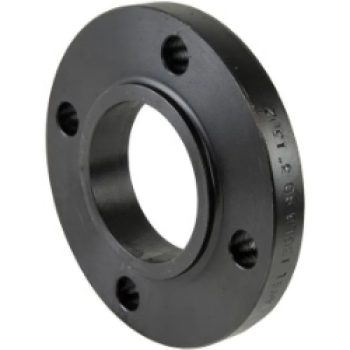

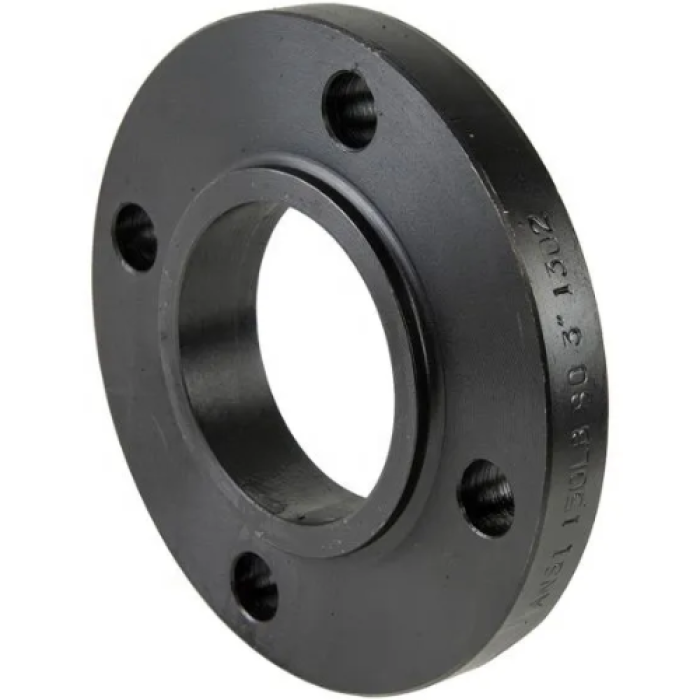

SERVICE METAL SO103.0 Raised Face Flange, 3 in Slip x 3 in Slip, Steel, 4 -Bolt Hole, 150 lb

  • Manufacturer: SERVICE METAL
  • Brand Name: SERVICE METAL
  • Part#: 2883373
  • MPN: SO103.0
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Availability By Location

SERVICE METAL Raised Face Flange, Flange Fitting, 3 in Connection Size 1, Slip Connection Type 1, 3 in Connection Size 2, Slip Connection Type 2, Slip|Slip Connection, Steel, Steel Material Construction, 0.94 in Flange Thickness, 4 Number of Bolt Holes, 0.62 in Bolt Hole Diameter, 150 lb Pressure Class, 7-1/2 in Dia, Additional Information: 6 in Bolt Circle Diameter, 1.19 in Length Through Hub

Additional Information      :      6 in Bolt Circle Diameter, 1.19 in Length Through Hub
Bolt Hole Diameter      :      0.62 in
Connection Size      :      3 in
Connection Type      :      Slip|Slip
Dimensions      :      7-1/2 in Dia
Domestic/Import      :      Import
Fitting Type      :      Flange
Flange Thickness      :      0.94 in
Material Construction      :      Steel
Material      :      Steel
Number of Bolt Holes      :      4
Pressure Class      :      150 lb
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/SERVICE_METAL_SO1.50_Specification_Sheet.pdf
