Dormont® 1675BPQR36 10057807
  1. pin-int

Dormont® 1675BPQR36 10057807

Dormont® 1675BPQR36 Moveable Gas Connector, 3/4 in, 36 in L, 3/4 in ID, Stainless Steel

  • Manufacturer: Watts Water Technologies
  • Brand Name: Dormont®
  • Part#: 9967580
  • MPN: 1675BPQR36
  • UPC: 662447027325
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Availability By Location

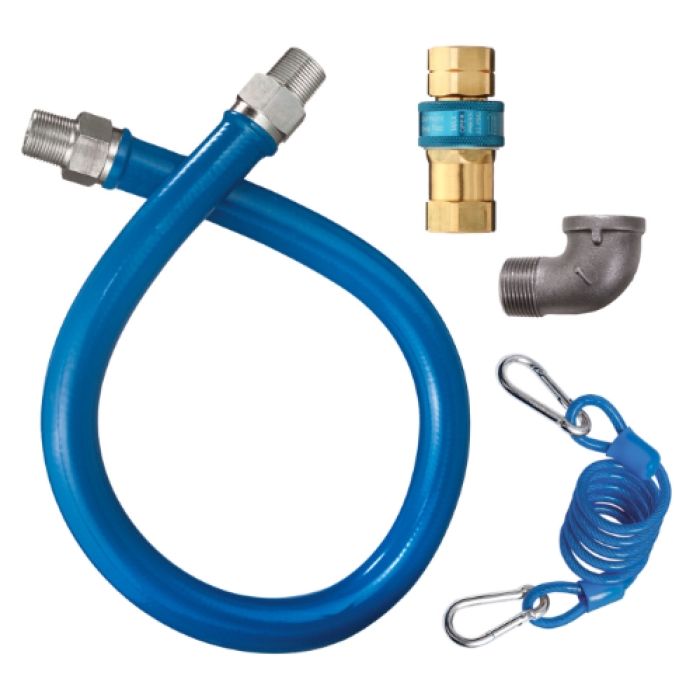

This 3/4 in ID, 36 in L moveable grade gas connector is composed of a 304 stainless steel corrugated tube covered with a tight weave stainless steel braid. The outside hose coating is an antimicrobial PVC coating that inhibits growth of bacteria, mold and mildew on the connector. Rotational technology fittings on both ends of the connector rotate 360 deg, greatly reducing stress at both connector ends. The included push-to-connect quick-disconnect is designed specifically for the foodservice industry and contains a thermal shutoff feature. Restraining device and mounting hardware are also included.

Dormont® Moveable Gas Connector, 3/4 in Fitting, 256000 Btu/hr, 36 in L, 3/4 in ID, 0.5 psi, Stainless Steel, Blue, PVC-Coated, 350 deg F

BTU Rating      :      256000 Btu/hr
Color      :      Blue
Finish      :      PVC-Coated
Fitting Size      :      3/4 in
Inside Diameter      :      3/4 in
Length      :      36 in
Material      :      Stainless Steel
Pressure Rating      :      0.5 psi
Temperature Rating      :      350 deg F
    With thermal shut-off
