NIBCO® T113-2-1/2FP HVACR_T113-2-1/2FP

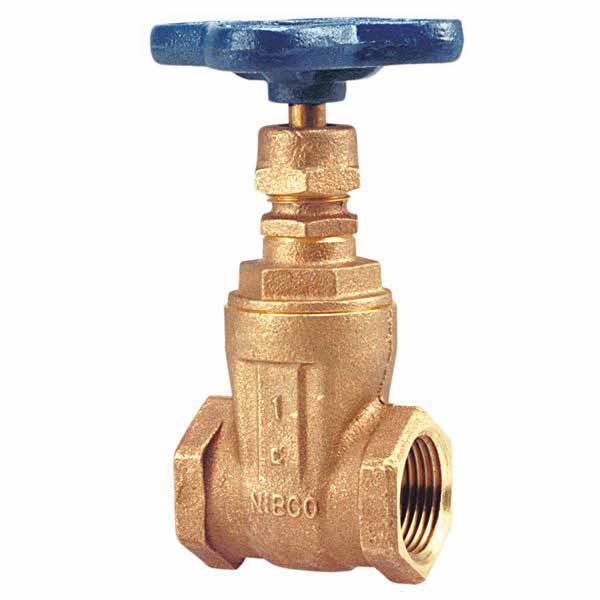

NIBCO® T113-2-1/2FP Gate Valve, 2-1/2 in Nominal, FNPT Connection, Hand Wheel Operator, Bronze Body

  • Manufacturer: NIBCO Inc
  • Brand Name: NIBCO®
  • Part#: 9220932
  • MPN: T113-2-1/2FP
  • UPC: 039923614209
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Availability By Location

NIBCO® Gate Valve, FNPT Connection, 2-1/2 in Nominal, 200 lb/sq-in WOG Non-Shock, 125 lb/sq-in Saturated Steam Pressure, 125 Pressure Class, Bronze Body, Bronze Seat, Silicon Bronze Stem, Bronze Seal, Aramid Fibers with Graphite Packing, Malleable Iron Handle, Hand Wheel Operator, 353 deg F, ASTM B-62, ASTM A-47 Material Standard, 4.13 in L Dimensions

Body Material      :      Bronze
Connection Type      :      FNPT
Dimensions      :      4.13 in L
Handle Material      :      Malleable Iron
Material Standard      :      ASTM B-62, ASTM A-47
Nominal Size      :      2-1/2 in
Operator Type      :      Hand Wheel
Packing Material      :      Aramid Fibers with Graphite
Pressure Class      :      125
Pressure Rating      :      200 lb/sq-in WOG Non-Shock, 125 lb/sq-in Saturated Steam
Seal Material      :      Bronze
Seat Material      :      Bronze
Stem Material      :      Silicon Bronze
Temperature Rating      :      353 deg F
    Bronze stuffing box, bonnet and wedge
